Sonovoid® Concrete Forms

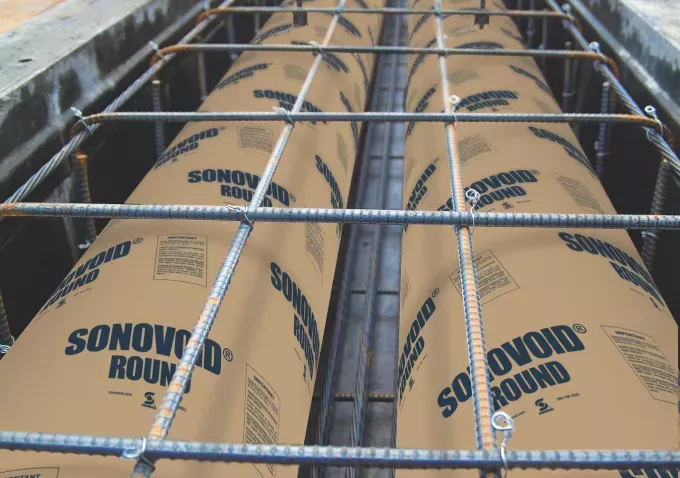

Sonovoid round concrete void forms are an economical solution to constructing roof slabs, bridge decks, beams, piers and pile projects without sacrificing structural integrity or strength.

Sonovoid Concrete Forms

Innovative & Cost-Effective Round Forms

Made from Sonoco's own recycled paper and adhesives for superior strength, Sonovoid Round forms are engineered for use with cast-in-place and pre-cast concrete. They reduce the amount of concrete, steel and supporting members needed in a project, resulting in significant savings in material.

Interior and exterior surfaces are treated for protection against weather and moisture. Plastic end closures for common sizes are available.

Durable

Sonovoid round void forms boast exceptional durability for consistent high performance.

Versatile

Many standard and custom diameters and lengths are available to meet your individual requirements.*

*Lengths are governed by accepting industry tolerances.

Sustainable

They are made from recovered paper, creating no landfill waste.

Size and Spacing Chart

Outside Diameter (inches)Maximum Support SpacingMaximum Spacing Between Hold Down
6.00 - 18.004' O.C.18" from end of tube, then every 4'
18.70 - 22.853' O.C.18" from end of tube, then every 3'
24.85 - 36.902' O.C12" from end of tube, then every 2'

Download Sonovoid Product Literature

Related Products

Sonotube Finish Free®

Our Finish Free concrete tubes have a marble-like smoothness, and they don't require patching, cladding or finishing labor.

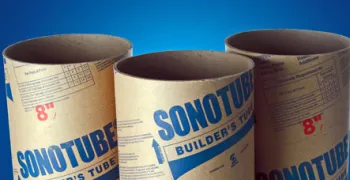

Sonotube Builder's Tube®

Perfect for do-it-yourself types working on decks, playgrounds and fences, these forms can withstand the pressure of concrete.

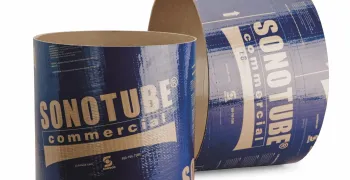

Sonotube Commercial

Stronger than paper and more economical than steel, our water resistant commercial columns are easy to cut and drill on site.

Sonotube Rainguard®

For more than 50 years, contractors around the world have relied on the Sonotube brand of fiber forms for cost-effective column form setting.
